SKF cam followers KRE 22PP

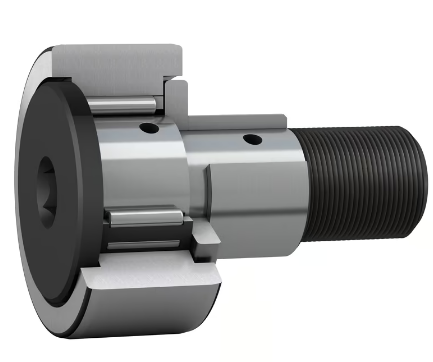

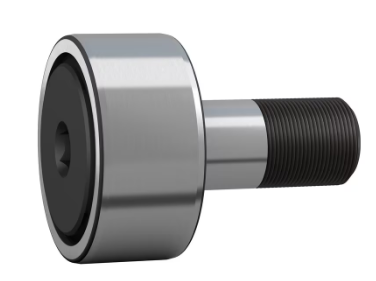

SKF cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on either needle (fig. 1) or cylindrical (fig. 2) roller bearings. Instead of an inner ring, they have a threaded solid stud (pin). SKF supplies them ready-to-mount. They are available in several designs and variants:



Get A Quote
Contact Us

SKF cam followers

Various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

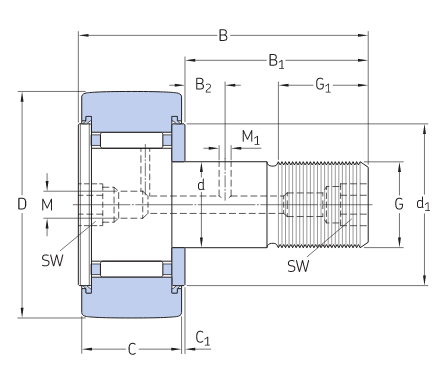

Designation Principal dimensions Basic load ratings Maximum radial loads
dynamic static dynamic static
D[mm] d[mm] B[mm] C[mm] C[kN] C0[kN] Frmax.[kN] F0rmax.[kN]
 KR40PPX   40   18   58.1   20   10.2   17   15   21.2
 KR40X   40   18   58.1   20   10.2   17   15   21.2
 KR47   47   20   66.1   24   14.7   25   22   31.5
 KR47PP   47   20   66.1   24   14.7   25   22   31.5
 KR47PPX   47   20   66.1   24   14.7   25   22   31.5
 KR47X   47   20   66.1   24   14.7   25   22   31.5
 KR52   52   20   66.1   24   16.1   28   35.5   50
 KR52PP   52   20   66.1   24   16.1   28   35.5   50
 KR52PPX   52   20   66.1   24   16.1   28   35.5   50
 KR52X   52   20   66.1   24   16.1   28   35.5   50
 KR62   62   24   80.1   29   24.2   44   57   81.5
 KR62PP   62   24   80.1   29   24.2   44   57   81.5
 KR62PPX   62   24   80.1   29   24.2   44   57   81.5
 KR62X   62   24   80.1   29   24.2   44   57   81.5
 KR72   72   24   80.1   29   25.5   48   100   143
 KR72PP   72   24   80.1   29   25.5   48   100   143
 KR72PPX   72   24   80.1   29   25.5   48   100   143
 KR72X   72   24   80.1   29   25.5   48   100   143
 KR80   80   30   100   35   35.8   71   102   146
 KR80PP   80   30   100   35   35.8   71   102   146
 KR80PPX   80   30   100   35   35.8   71   102   146
 KR80X   80   30   100   35   35.8   71   102   146
 KR90   90   30   100   35   38   76.5   156   224
 KR90PP   90   30   100   35   38   76.5   156   224
 KR90PPX   90   30   100   35   38   76.5   156   224
 KR90X   90   30   100   35   38   76.5   156   224
 KRE 16PP   16   9   28.2   11   2.92   3.1   3.05   4.3
 KRE 19PP   19   11   32.2   11   3.3   3.8   3.75   5.4
 KRE 22PP   22   13   36.2   12   3.96   5   4.15   6
 KRE 26PP   26   13   36.2   12   4.46   6.1   9.3   13.4

WHCD Bearing Co.,Ltd is professional bearing supplier, engaged in bearing business with more than eighteen years, export to worldwide countries, as America, European, Middle-East, Southeast Asia …etc. with plenty long-term cooperation customers. WHCD Bearing company will provide professional and prompt solution for customers.Original Quality and Warranted, and Bearing experts team support customer service. Various bearing types for customer choose:

Bearing Types:
Self-aligning ball bearing
Cylindrical roller bearing
Spherical roller bearing
Tapered roller bearing
Angular contact ball
Needle roller
Deep groove ball bearing
Axial deep groove ball
Pillow block bearing and units
LM/Linear Guide
