SKF Needle Roller  BK4520

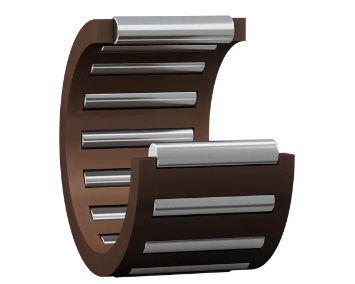

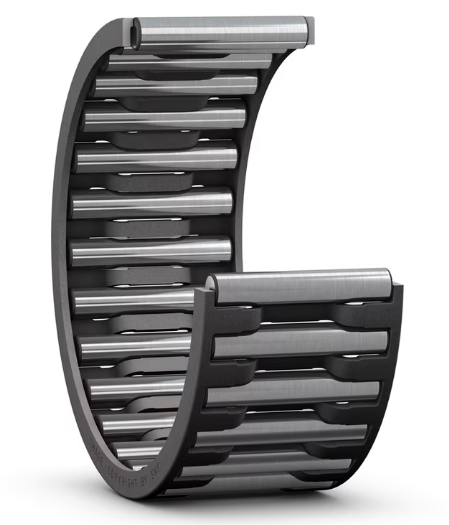

SKF Drawn cup needle roller bearings

SKF drawn cup needle roller bearings have a deep drawn, thin-walled outer ring. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. These bearings are mounted with a tight interference fit in the housing. That enables a simple and economic design of the housing bore, as shoulders or snap rings are not required to locate the bearing axially.The drawn cup of hardened steel and the needle roller and cage assembly of these bear­ings form a non­-separable unit.

Get A Quote
Contact Us

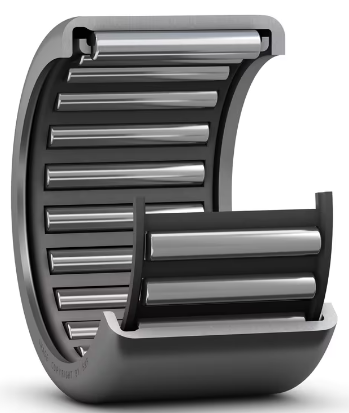

SKF Drawn cup needle roller bearing with a closed/open end

Various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

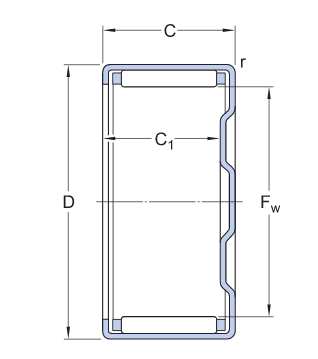

Designation Principal dimensions Basic load ratings Speed ratings
dynamic static Reference speed Limiting speed
Fw[mm] D[mm] C[mm] C[kN] C0[kN] [r/min] [r/min]
  BK2520   25   32   20   19   32.5   9 500   11 000
  BK2526   25   32   26   24.2   45   9 500   11 000
  BK2538   25   32   38   33   65.5   9 500   11 000
  BK3012   30   37   12   11.7   18.3   8 000   9 000
  BK3016   30   37   16   16.5   29   8 000   9 000
  BK3020   30   37   20   20.9   40   8 000   9 000
  BK3026   30   37   26   27   54   8 000   9 000
  BK3038   30   37   38   35.8   80   8 000   9 000
  BK3520   35   42   20   22.9   46.5   7 000   8 000
  BK4020   40   47   20   24.2   53   6 300   7 000
  BK4520   45   52   20   26   60   5 600   6 300
  HK0306TN   3   6.5   6   1.23   0.88   24 000   26 000
  HK0408   4   8   8   1.76   1.37   22 000   26 000
  HK0509   5   9   9   2.38   2.08   22 000   24 000
  HK0606   6   10   6   1.72   1.29   20 000   22 000
  HK0608   6   10   8   2.01   1.73   20 000   22 000
  HK0609   6   10   9   2.81   2.7   20 000   22 000
  HK0709   7   11   9   3.03   3.05   20 000   22 000
  HK0808   8   12   8   2.7   2.75   19 000   22 000
  HK0810   8   12   10   3.69   4.05   19 000   22 000
  HK0810RS   8   12   10   2.7   2.75   13 000
  HK0810.2RS   8   12   10   2.33   2.04   13 000
  HK0812RS   8   12   12   3.69   4.05   13 000
  HK0812.2RS   8   12   12   2.7   2.75   13 000
  HK0908   9   13   8   3.52   3.9   18 000   20 000
  HK0910   9   13   10   4.13   4.8   18 000   20 000
  HK0912   9   13   12   5.12   6.4   18 000   20 000
  HK1010 E   10   14   10   4.57   5.7   18 000   20 000
  HK1012   10   14   12   5.39   6.95   18 000   20 000
  HK1012RS   10   14   12   4.29   5.3   12 000
