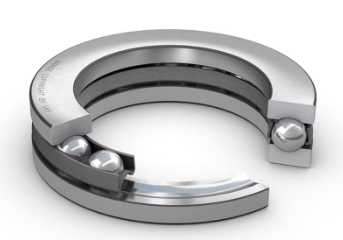

SKF thrust ball bearings 51196F

SKF Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Get A Quote
Contact Us

SKF Thrust Ball Bearings

Various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

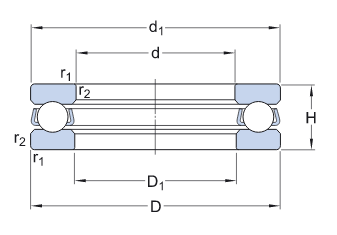

Designation Principal dimensions Basic load ratings Speed ratings
dynamic static Reference speed Limiting speed
d[mm] D[mm] H[mm] H1[mm] C[kN] C0[kN] [r/min] [r/min]
 51124   120   155   25   85.2   305   2 200   3 000
 51126   130   170   30   119   440   1 900   2 600
 51128   140   180   31   111   440   1 800   2 600
 51130M   150   190   31   111   440   1 700   2 400
 51132M   160   200   31   112   465   1 700   2 400
 51134M   170   215   34   133   540   1 600   2 200
 51136M   180   225   34   135   570   1 500   2 200
 51138M   190   240   37   172   710   1 400   2 000
 51140M   200   250   37   168   710   1 400   1 900
 51144M   220   270   37   178   800   1 300   1 900
 51148M   240   300   45   234   1 040   1 100   1 600
 51152M   260   320   45   238   1 100   1 100   1 500
 51156M   280   350   53   319   1 460   950   1 300
 51160M   300   380   62   364   1 760   850   1 200
 51164M   320   400   63   371   1 860   800   1 100
 51168M   340   420   64   377   1 960   800   1 100
 51172F   360   440   65   390   2 080   750   1 100
 51176F   380   460   65   397   2 200   750   1 000
 51180F   400   480   65   403   2 280   700   1 000
 51184F   420   500   65   410   2 400   700   1 000
 51188F   440   540   80   527   3 250   600   850
 51192F   460   560   80   527   3 250   600   800
 51196F   480   580   80   540   3 550   560   800
 512/500F   500   670   135   1 010   6 800   380   530
 51200   10   26   11   12.7   18.6   8 000   11 000
 51201   12   28   11   13.3   20.8   8 000   11 000
 51202   15   32   12   15.9   25   7 000   10 000
 51203   17   35   12   16.3   27   6 700   9 500
 51204   20   40   14   21.2   37.5   6 000   8 000
 51205   25   47   15   26.5   50   5 300   7 500

WHCD Bearing Co.,Ltd is professional bearing supplier, engaged in bearing business with more than eighteen years, export to worldwide countries, as America, European, Middle-East, Southeast Asia …etc. with plenty long-term cooperation customers. WHCD Bearing company will provide professional and prompt solution for customers.Original Quality and Warranted, and Bearing experts team support customer service. Various bearing types for customer choose:

Bearing Types:
Self-aligning ball bearing
Cylindrical roller bearing
Spherical roller bearing
Tapered roller bearing
Angular contact ball
Needle roller
Deep groove ball bearing
Axial deep groove ball
Pillow block bearing and units
LM/Linear Guide
